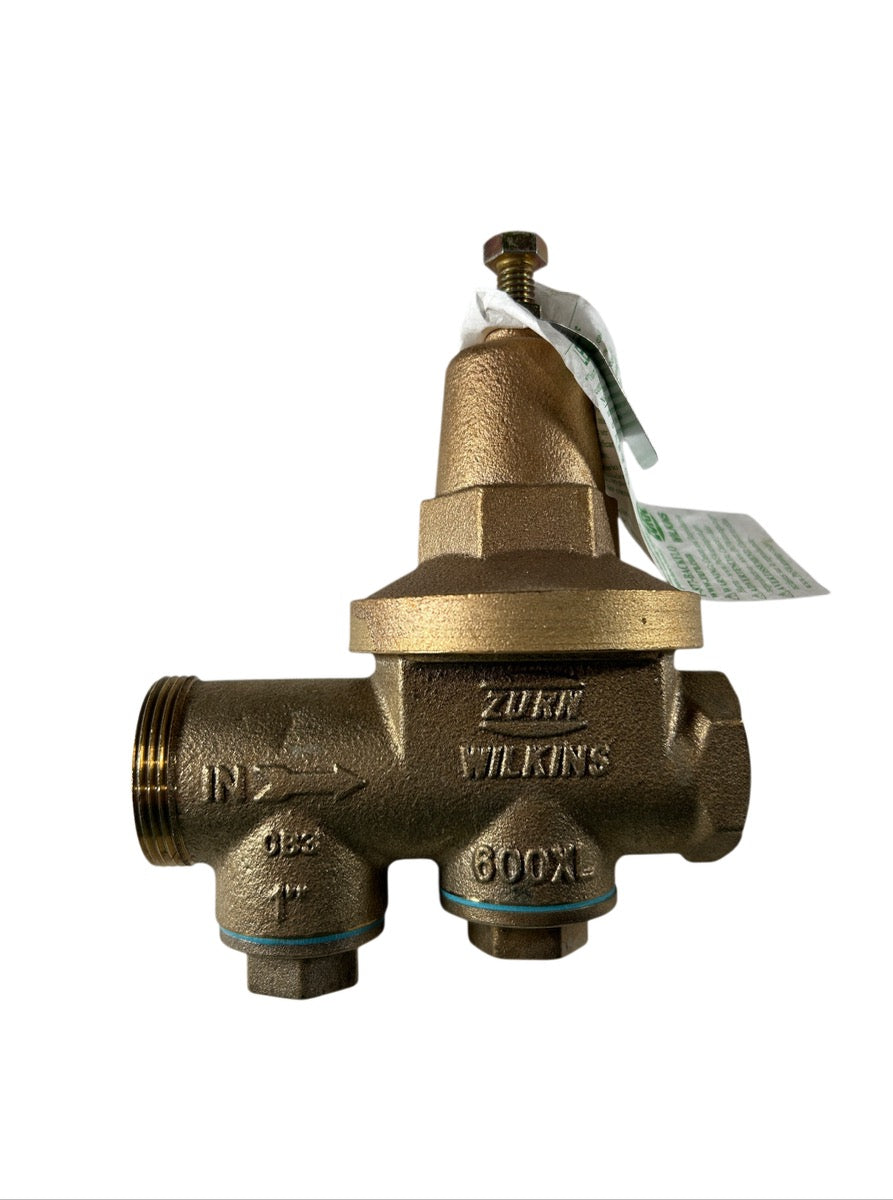

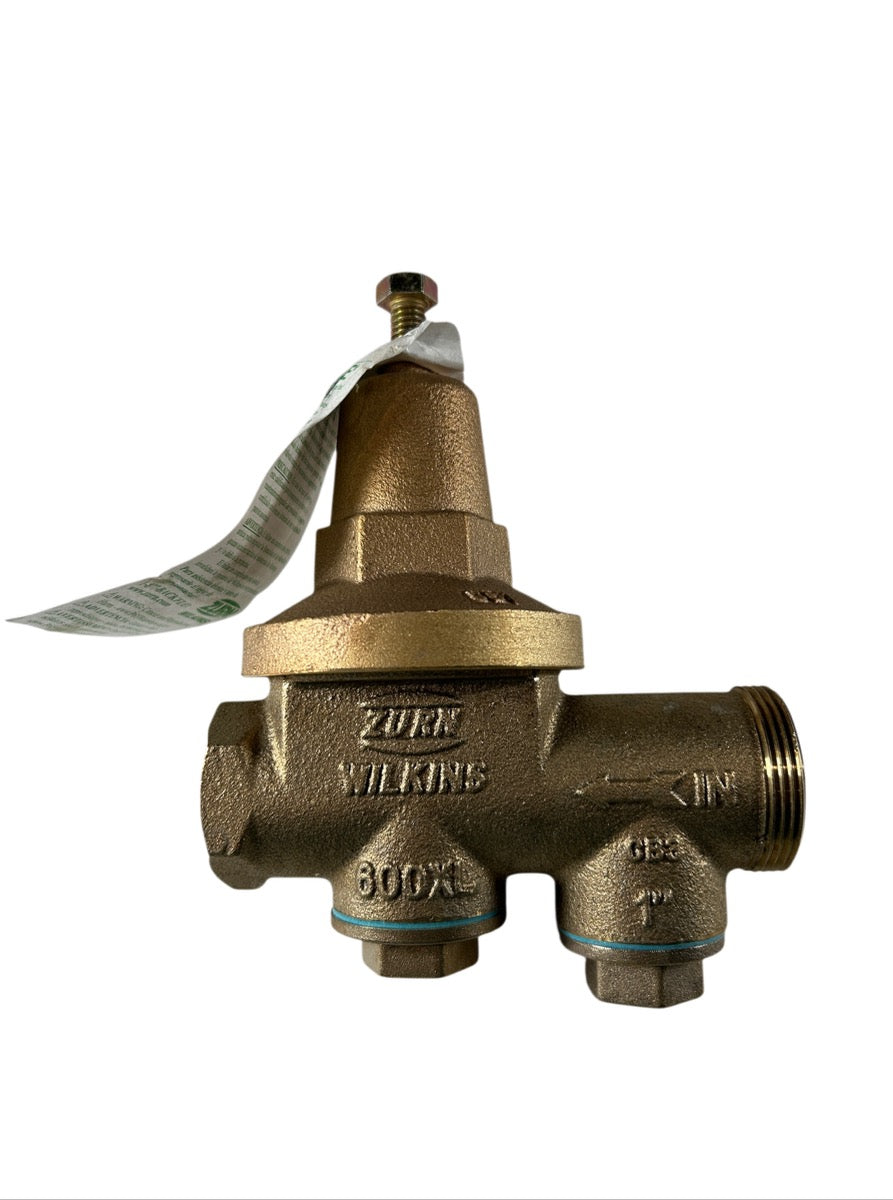

The Zurn Wilkins 1-600XL is a new, lead-free brass water pressure reducing valve (PRV) with 1-inch single union FNPT connections, factory-set to 50 psi with an adjustable range of 25–75 psi and a maximum inlet pressure rating of 300 psi. The body is constructed of lead-free brass (less than 0.25% lead on wetted surfaces), complying with NSF/ANSI 61 and NSF/ANSI 372 lead-free requirements, and is certified to CSE B356 and cUPC standards. The integral bypass design prevents pressure buildup caused by thermal expansion downstream, and the diaphragm-type sensing element provides accurate, stable outlet pressure across varying flow conditions. Rated to 140°F maximum working temperature, this valve is designed for installation on potable water service lines in residential and light commercial applications where municipal inlet pressures exceed safe plumbing system limits. Includes a tailpiece kit (union nut, tailpiece, union gasket, and O-ring) and maintenance instructions.
Product Specifications
| Manufacturer | Zurn Wilkins |
| Model Number | 1-600XL |
| Valve Type | Pressure Reducing Valve (PRV) |
| Pipe Size | 1 in |
| Connection Type | Single Union FNPT |
| Body Material | Lead-Free Brass |
| Lead Content (Wetted Surfaces) | < 0.25% |
| Outlet Pressure Range | 25–75 psi (adjustable) |
| Factory Pressure Setting | 50 psi |
| Maximum Inlet Pressure | 300 psi |
| Maximum Temperature | 140°F |
| Sensing Element | Diaphragm |
| Certifications | NSF/ANSI 61, NSF/ANSI 372, CSE B356, cUPC |
| Lead-Free Compliant | Yes |

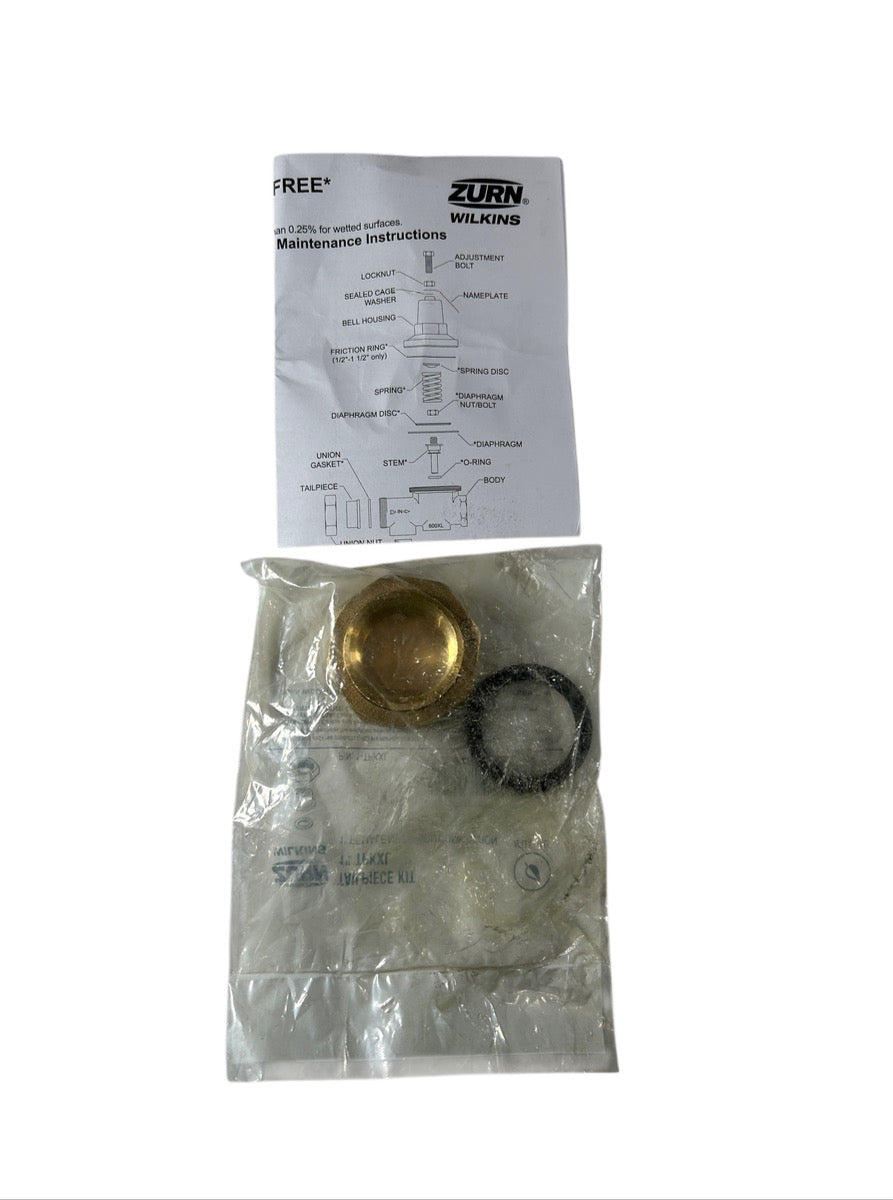

| Includes | Tailpiece kit (union nut, tailpiece, gasket, O-ring) |
| Condition | New |
